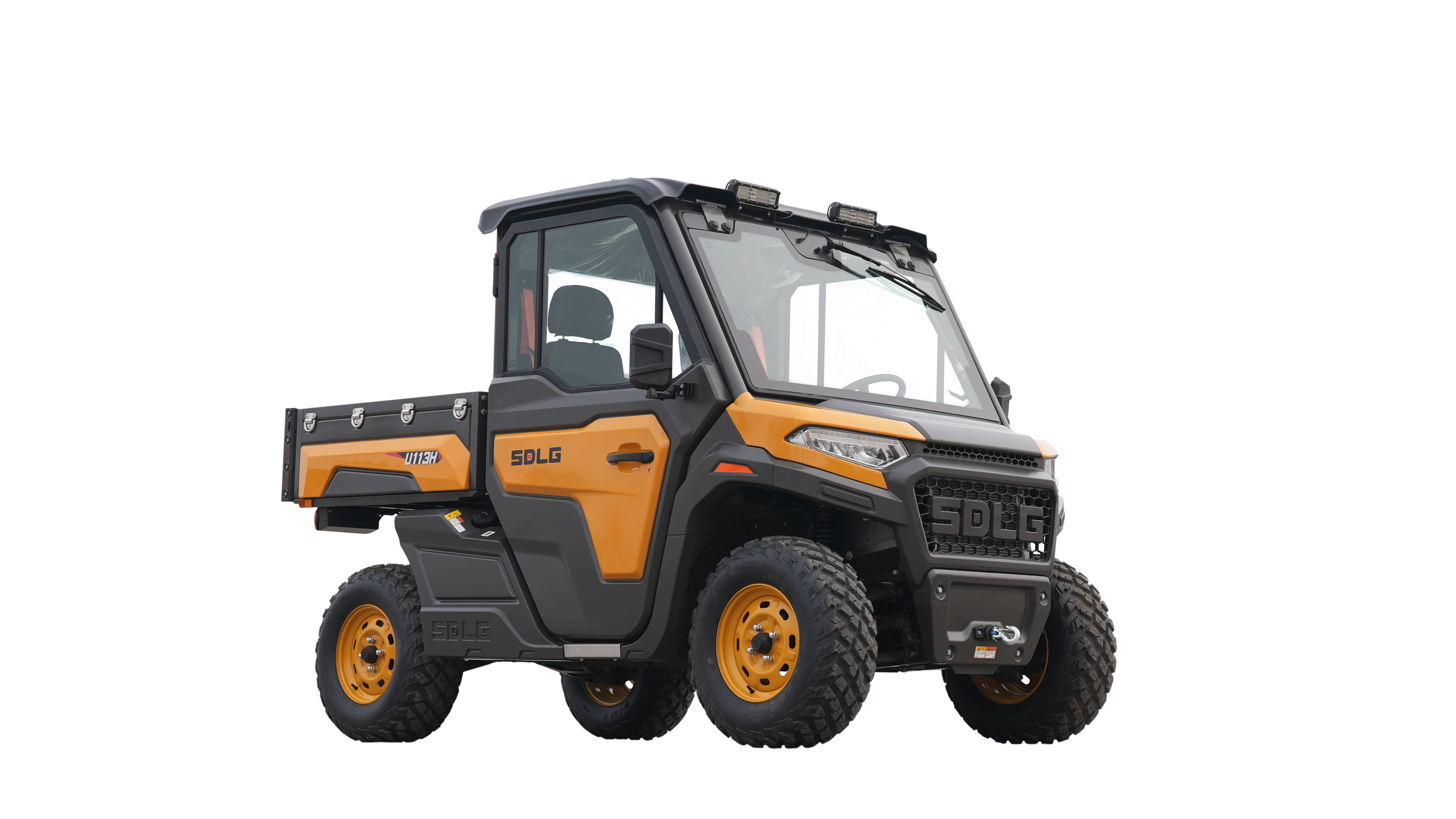

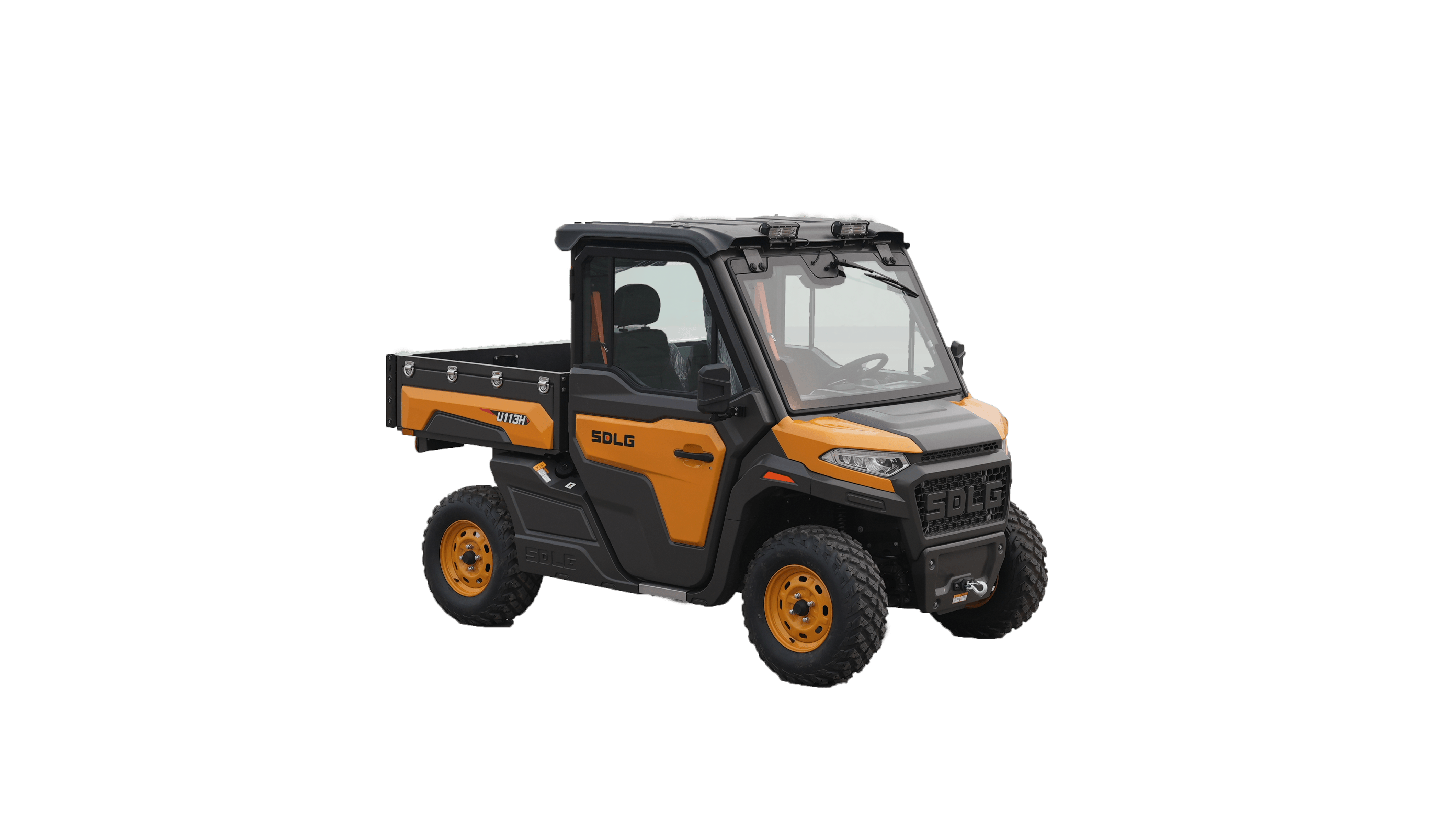

UTV U113H(TO BE LAUNCHED)
Engine model
Rated power, kW (hp)
Payload capacity, kg (lbs)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
- 1.The U113H utilizes a Perkins diesel engine, which delivers powerful, high-torque output, providing enhanced traction and stability, ensuring smooth and reliable operation in a variety of operating environments.
- 2.The hydrostatic transmission system provides greater driving control, enhancing operation accuracy, traction, and overall efficiency.
- 3.The distributed layout of the pump, motor, and solenoid valve enables fully electronic control, allowing for smooth switching between forward and reverse directions, and also improving operational precision and responsiveness.
- 4.Utilizing a dual-circuit system with proportional pump-mode braking, the service brake offers smooth deceleration and easy operation in all conditions, which enhances both driver comfort and safety.
- 5.The cab is equipped with zoned air conditioning, one-touch window lifts, and an assisted steering wheel return function, enhancing the driver’s operating experience and comfort.
Technical Parameter
| Engine model | Perkins 403J-11 |
| Engine type | 4-stroke,3-cylinder,naturally aspirated |
| Rated power, kW (hp) | 18.4 (24.7) |
| Displacement, mL (cu.in.) | 1,131 (69) |
| Fuel tank capacity, L (gal) | 60 (15.9) |
| Drivetrain | HST |
| Driving system | 2WD/4WD |
| Shift selection | Hi-Lo range forward, reverse, neutral |
| Front differential | Limited-slip differential |
| Rear differential | Electronic differential lock |
| Steering | Electric power steering (EPS) |
| Front suspension | Double A-arm suspension with adjustable spring preload |
| Rear suspension | Double A-arm suspension with adjustable spring preload |
| Brake system | Wet-disk brakes |
| Parking system | Wet-disk brakes |
| Tire | 27×11-14/6PR |
| Max.speed, km/h (mph) | 50 (31) |
| Towing capacity, kg (lbs) | 1,000 (2,205) |
| Payload capacity, kg (lbs) | 700 (1,543) |
| Cargo bed capacity, kg (lbs) | 500 (1,102) |

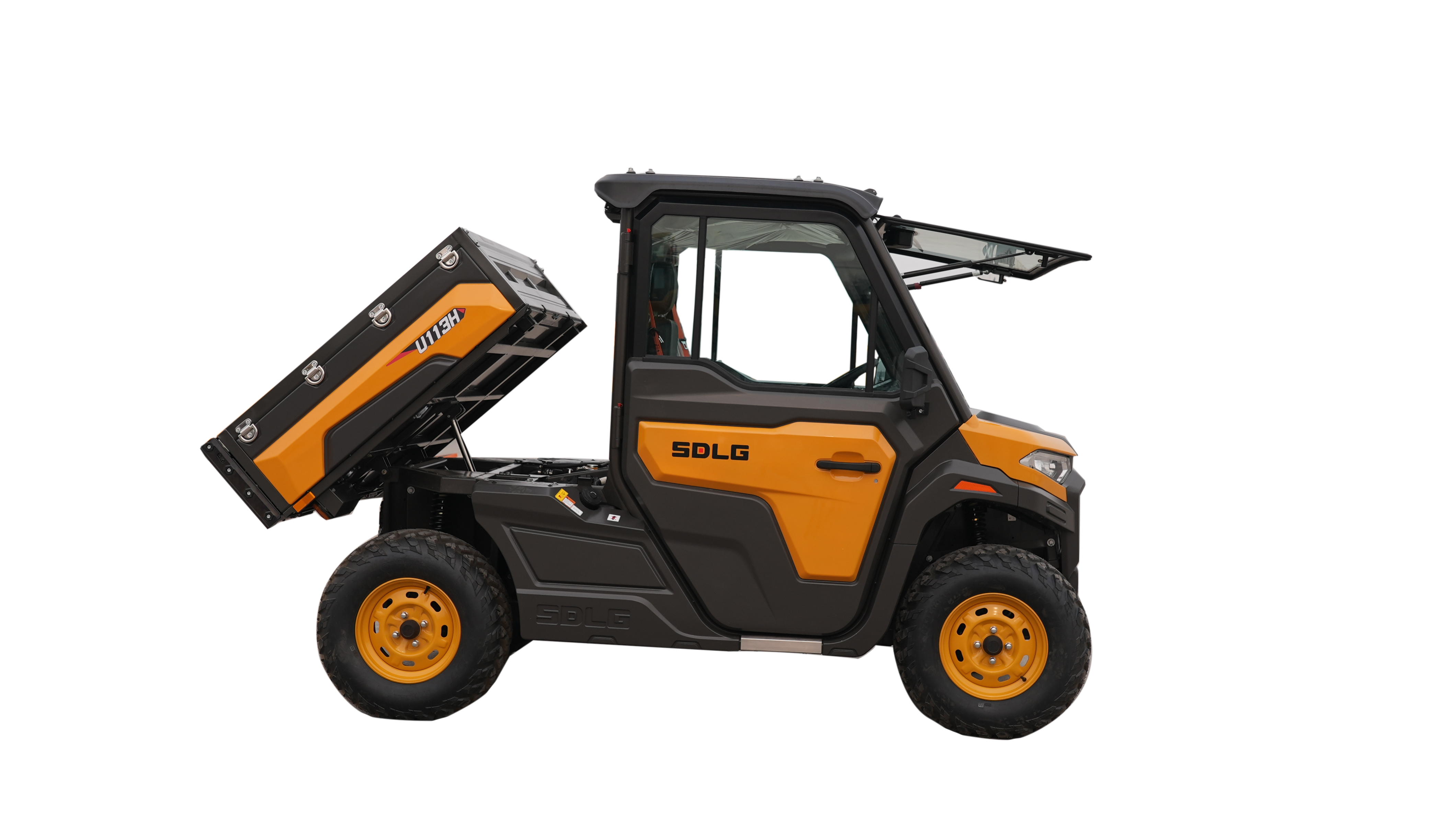

| Dumping system | Electric power lift |
| Body Color | SDLG yellow and grey |
| Bottom guard | Full guard |
| Start method | Key |
| Seat belts | 3-point |
| Overall length, mm (in.) | 3,132 (123.3) |
| Overall width, mm (in.) | 1,560 (61.4) |
| Overall height, mm (in.) | 2,025 (79.7) |
| Operating weight, kg (lbs) | 1,500 (3,307) |
| Wheelbase, mm (in.) | 2,100 (82.7) |
| Minimum ground clearance, mm (in.) | 300 (11.8) |
| Turning radius, mm (in.) | 4,264 (167.9) |
| Cargo bed: Length × Width × Depth, mm (in.) | 1,127 (44.4)×1,460 (57.5)×362 (14.3) |
| Cargo bed capacity, m³ (cu. ft.) | 0.59 (20.8) |
| Cargo bed height (unloaded), mm (in.) | 830 (32.7) |
