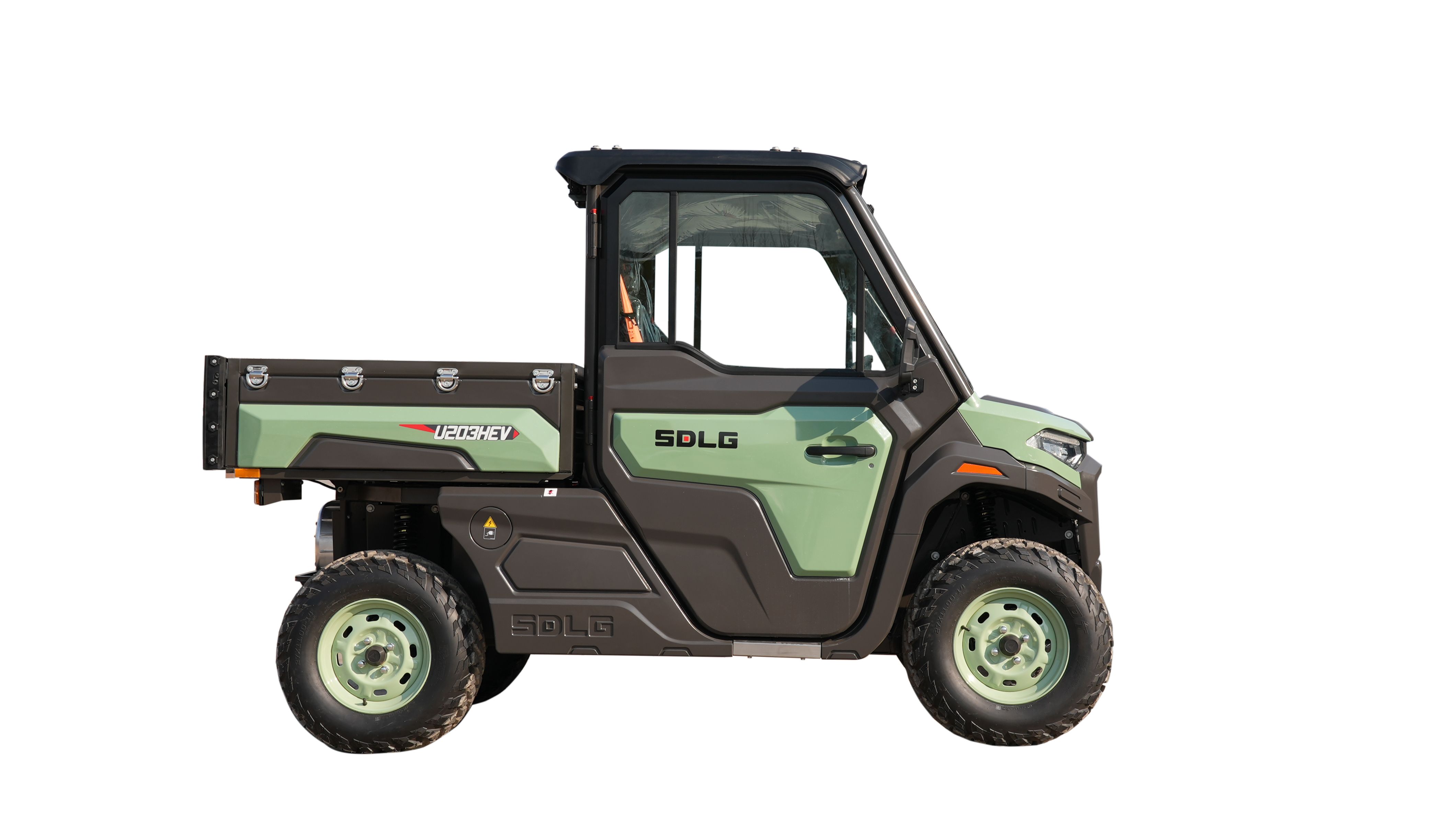

UTV U203HEV(TO BE LAUNCHED)

Rated power, kW (hp)

20(26.8)

Payload capacity, kg (lbs)

700 (1,543)
Field of application:

Utilities

Heavy infrastructure

Quarries & Aggregates

Features

1.U203HEV is fixed with a safe and reliable Lithium iron phosphate battery, delivering powerful output, running with low noise, and reaching zero emissions.
2.The unit is equipped with a high-efficiency permanent magnet synchronous motor, offering greater traction force than a diesel one to adapt to various kinds of rough terrain.
3.The distributed layout of the pump, motor, and solenoid valve enables fully electronic control, allowing for smooth switching between forward and reverse directions, and also improving operational precision and responsiveness.
4.Utilizing a dual-circuit system with proportional pump-mode braking, the service brake offers smooth deceleration and easy operation in all conditions, which enhances both driver comfort and safety.
5.It supports multiple charging methods, including portable cable, AC charging station, and DC charging station, and is capable of a full charge in as little as 1 hour.
6.The cab is equipped with zoned air conditioning, one-touch window lifts, and an assisted steering wheel return  function, enhancing the driver’s operating experience and comfort.

Technical Parameter
Battery type LFP
Battery capacity, kWh 24
Voltage platform, V 358.4
Motor type PMSM
Rated power, kW (hp) 20(26.8)
Drivetrain HST
Driving system 2WD/4WD
Shift selection Hi-Lo range forward, reverse, neutral
Front differential Limited slip differential
Rear differential Electronic differential lock
Steering Electrical power steering (EPS)
Front suspension Double A-arm suspension with adjustable spring preload
Rear suspension Double A-arm suspension with adjustable spring preload
Brake system Wet-disk brakes
Parking system Wet-disk brakes
Tire 27×11-14/6PR
Max.speed, km/h (mph) 50 (31)
Towing capacity, kg (lbs) 1,143 (2,520)
Payload capacity, kg (lbs) 700 (1,543)
Cargo bed capacity, kg (lbs) 500 (1,102)
Dumping system Electrical power lift
Body Color SDLG green and grey
Bottom guard Full guard
Start method Key
Seat belts 3-point
Overall length, mm (in.) 3,132 (123.3)
Overall width, mm (in.) 1,560 (61.4)
Overall height, mm (in.) 2,025 (79.7)
Operating weight, kg (lbs) 1,500 (3,307)
Wheelbase, mm (in.) 2,100 (82.7)
Minimum ground clearance, mm (in.) 300 (11.8)
Turning radius, mm (in.) 4,264 (167.9)
Cargo bed: Length × Width × Depth, mm (in.) 1,127 (44.4)×1,460 (57.5)×362 (14.3)
Cargo bed capacity, m³ (cu. ft.) 0.59 (17.3)
Cargo bed height (unloaded), mm (in.) 830 (32.7)
