Standard Bucket Capacity ,m³ (yd³)
Rated Loading Capacity (kg)
Operating Weight (kg)
Rated Power (kW)
Utilities
Heavy infrastructure
Quarries & Aggregates

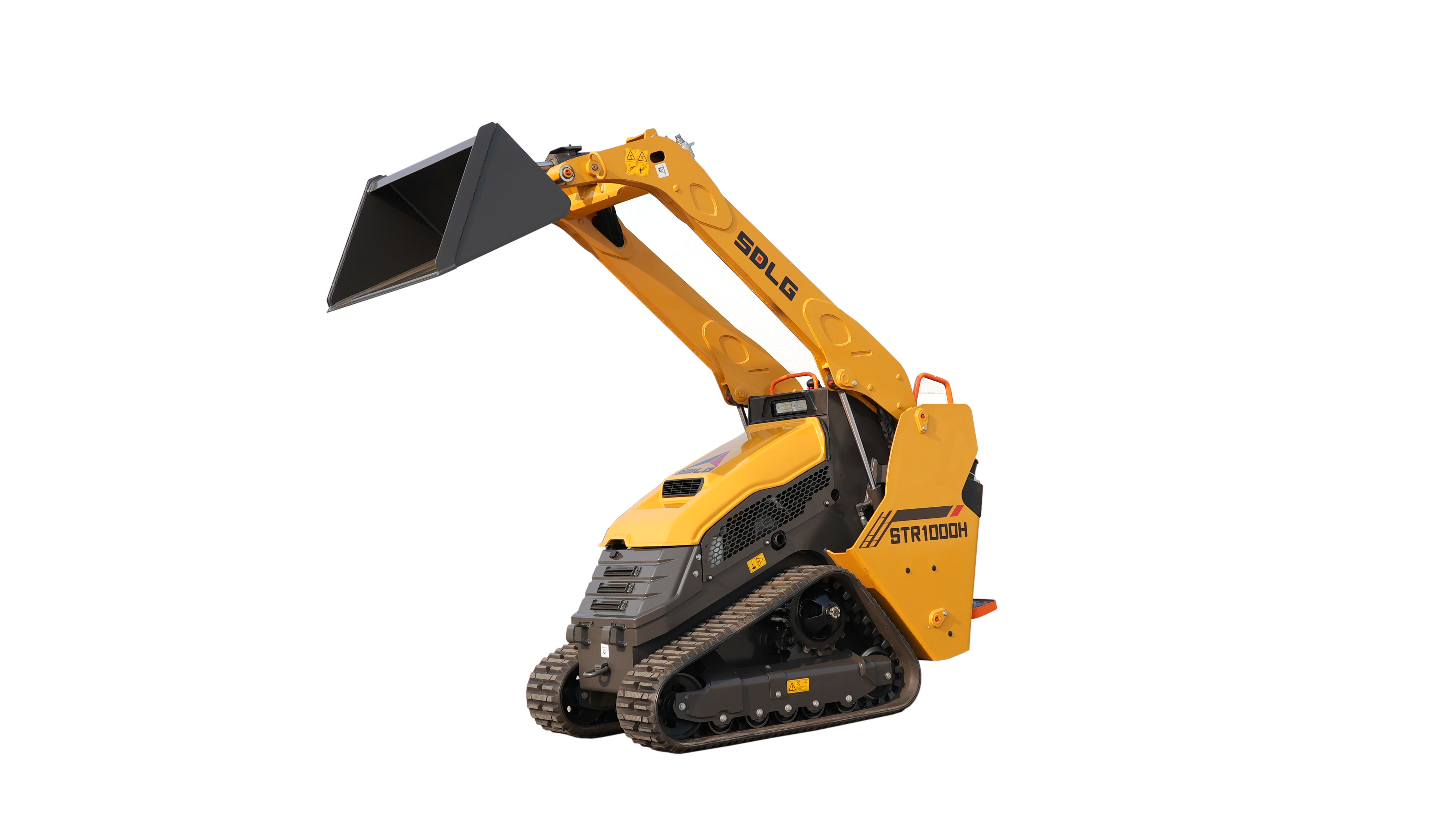

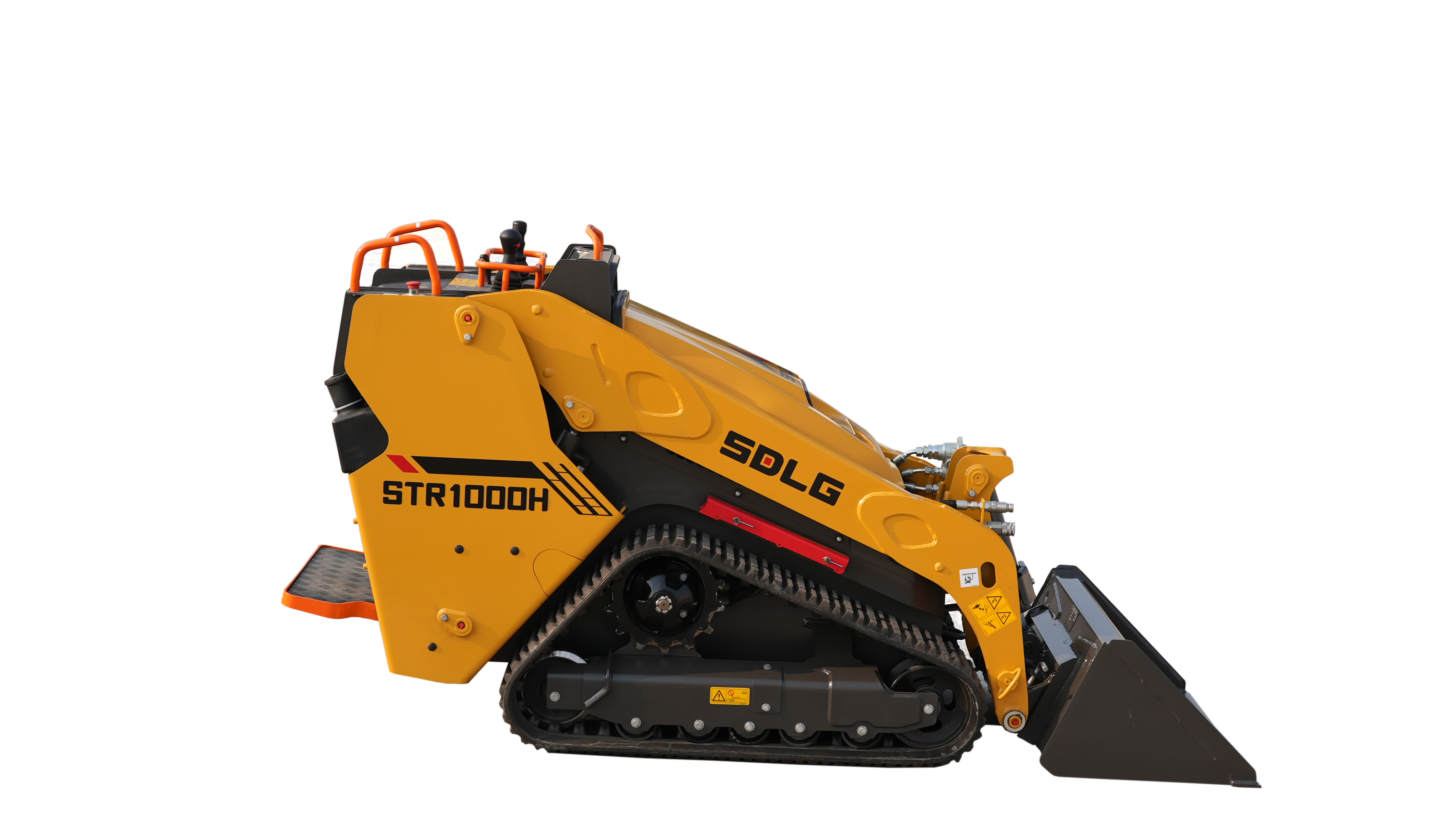

The unit features a compact body design, allowing it to excel at handling various tough tasks in tight working environments.
Conveniently arranged operational platforms and autonomous electric control programs deliver an unparalleled driving experience and enhanced productivity.
The DA anti-stall system, safety lockout system, and operator presence control system ensure safe and reliable driving.
Standard with the third and fourth auxiliary functions, the flow rate reaches up to 14.5gal/min, and it can be equipped with a lawn mower, auger, pallet fork, bucket, and other attachments.
The front upper hood flips backward, and the operating platform can be rotated open for convenient daily maintenance and repair.
| Standard Bucket Capacity ,m³ (yd³) | 0.13 (0.17) |
| Rated Loading Capacity (kg) | 453 |
| Operating Weight (kg) | 1,580 |
| Engine Model | Kubota D902-T |
| Rated Power (kW) | 17.4 |
| Rated Engine Speed (rpm) | 2,800 |
| Displacement (ml) | 898 |
| Speed (km/h) | 0-7.5 |
| Breakout Force (kN) | 11 |
| Main Relief Set Pressure (bar) | 200 |
