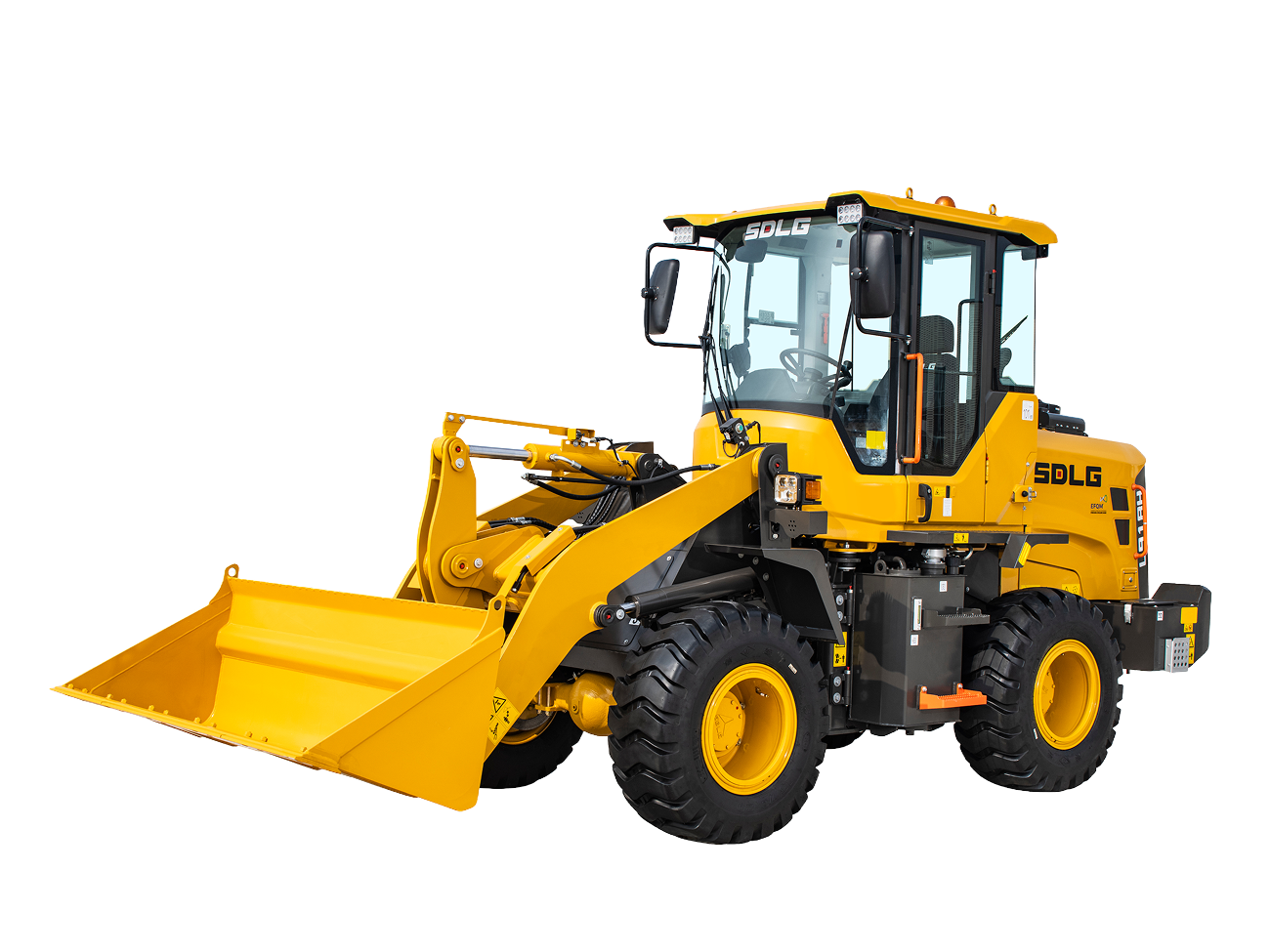

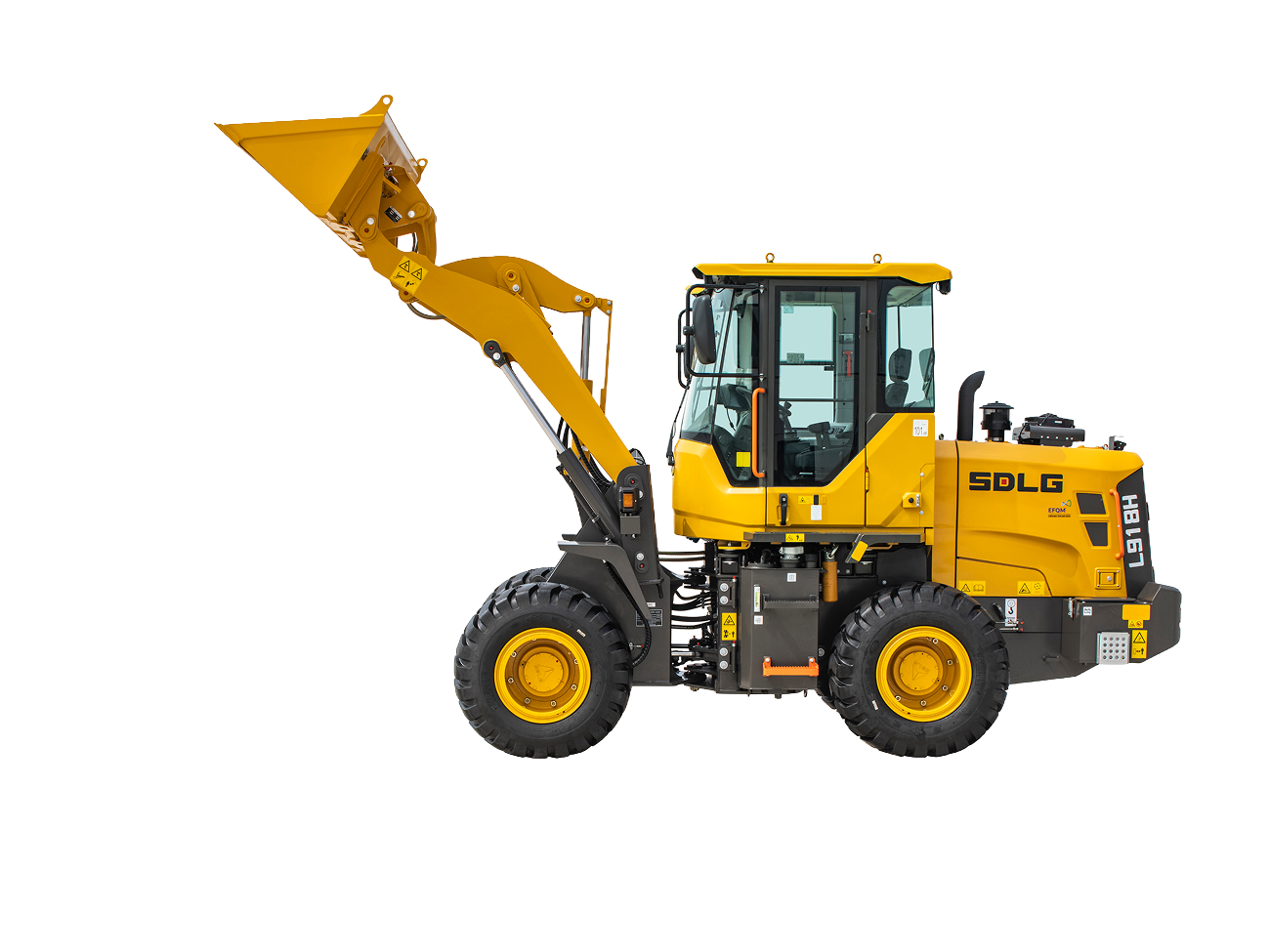

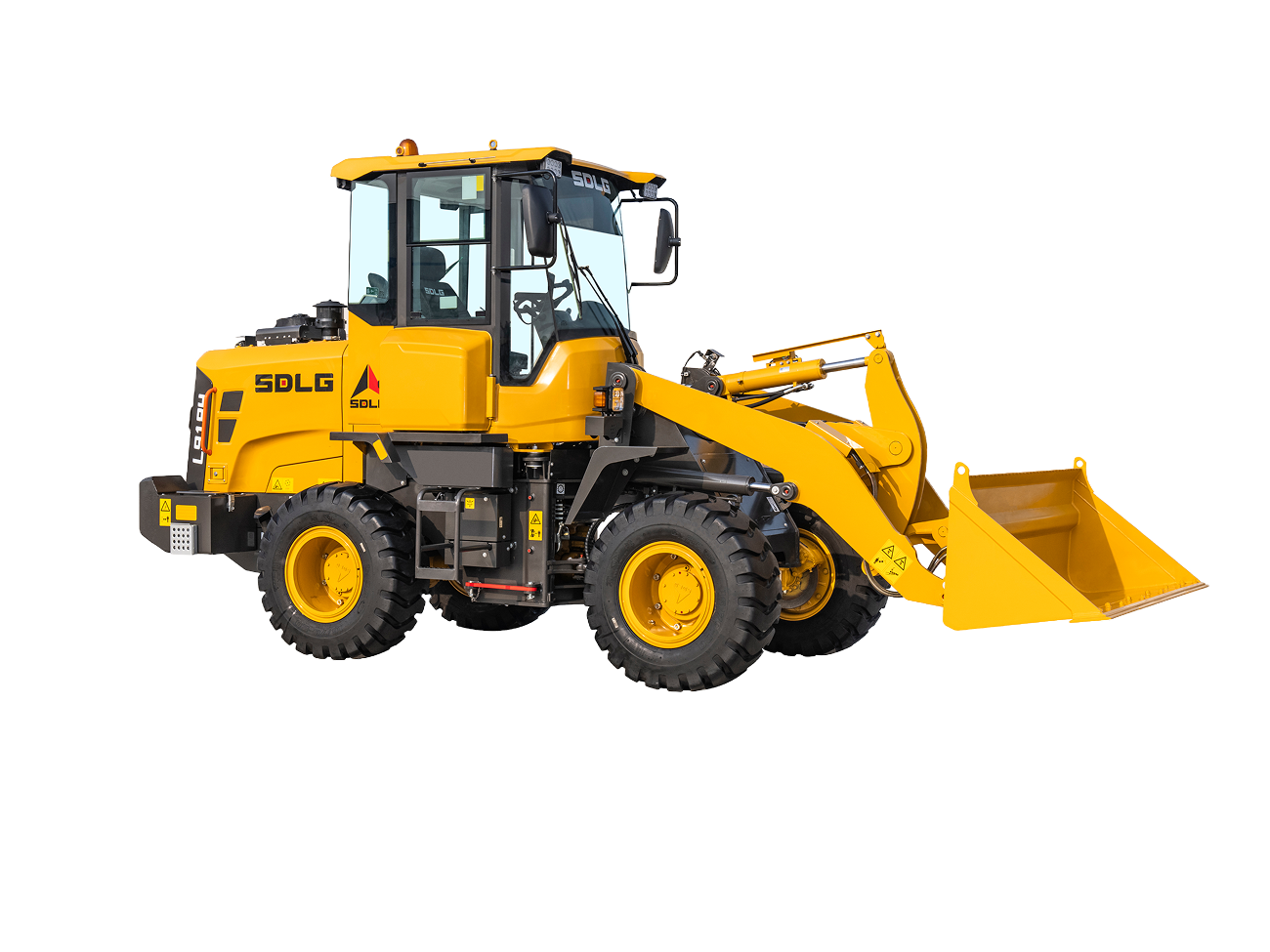

Wheel Loader L918H
Rated load,kg (lbs)
Standard bucket capacity,m³ (yd³)
Operating weight,kg (lbs)
Rated power,kW (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1.The L918H Utilizes a large displacement Deutz engine with sufficient power and fast cycle times thus allowing the unit to operate at lower RPM, reducing vibration, noise, and fuel consumption, and improving reliability.
2.The operating weight, stability, and traction of the machine are excellent.
3.The transmission system is equipped with an electronically controlled gearbox and a reinforced drive axle.
4.ROPS&FOPS certified spacious cab offers air conditioning and a mechanical suspension seat.
5.Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
2.The operating weight, stability, and traction of the machine are excellent.
3.The transmission system is equipped with an electronically controlled gearbox and a reinforced drive axle.
4.ROPS&FOPS certified spacious cab offers air conditioning and a mechanical suspension seat.
5.Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
Technical Parameter
| Rated load,kg (lbs) | 1,400 (3,086) |
| Standard bucket capacity,m³ (yd³) | 0.8 (1.05) |
| Operating weight,kg (lbs) | 6,800 (14,991) |
| Engine | Deutz TCD3.6 |
| Rated power,kW (hp) | 55.4 (74.3) |
| Rated engine speed,rpm | 2300 |
| Engine displacement,ml (in³） | 3,620 (221) |
| Speed at Fl /Rl,km/h (mph) | 0~9.5 (0~5.9) |
| Speed at F2/R2,km/h (mph) | 0-24.5 (0~15.2) |
| Speed at F3/R3,km/h (mph) | __ |
| Speed at F4,km/h (mph) | __ |
| Breakout force,kN ( lbf ) | 38 (8,543) |
| Tire size | 16/70-20 |
| Fuel tank,L(gal) | 120 (31.7) |
| Overall shipping size (L • W • H)，mm (ft in) | 5,990 (19'7.8")*2,140 (7'0.3")*3,150 (10'4.0") |
| A Wheelbase ,mm (ft in) | 2,260 (7'5.0") |
| B Ground clearance ,mm (ft in) | 290 (11.4") |
| C Reach at max. height ,mm (ft in) | 1,125 (3'8.3") |
| D Dumping angle ,° | 45 |
| E Height at bucket pin ,mm (ft in) | 3,165 (10'4.6") |
| F Dumping height ,mm (ft in) | 2,420 (7'11.3") |
| G Bucket rollback at ground level | 44 |
| I Wheel tread ,mm (ft in) | 1,630 (5'4.2") |
| J Articulation angle ,° | 38 |
| K Turning radius at over bucket,mm (ft in) | 5,340 (17'6.2") |
| M Turning radius at inside of tires,mm (ft in) | 4,460 (14'7.6") |
