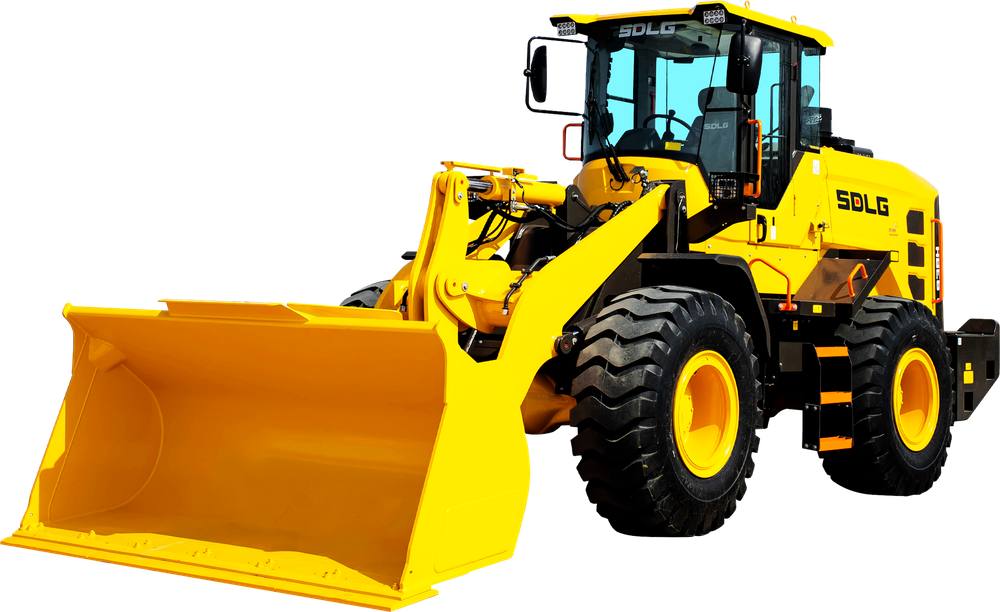

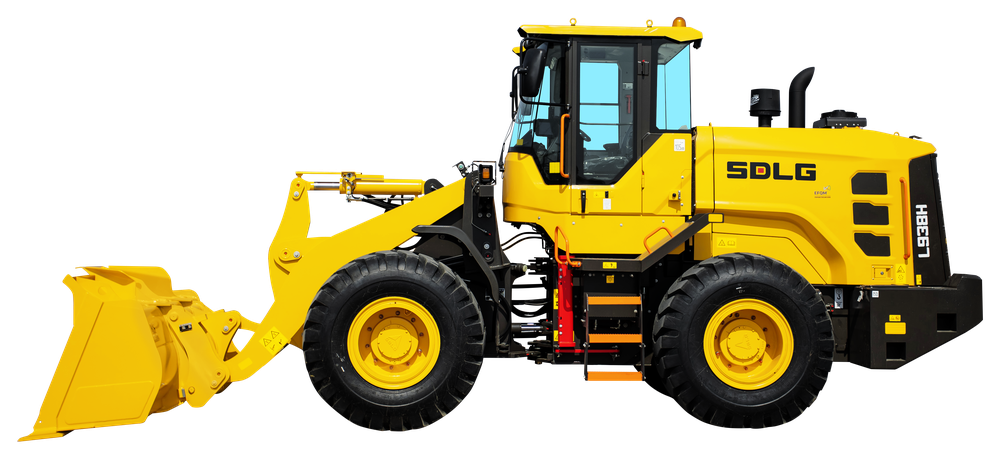

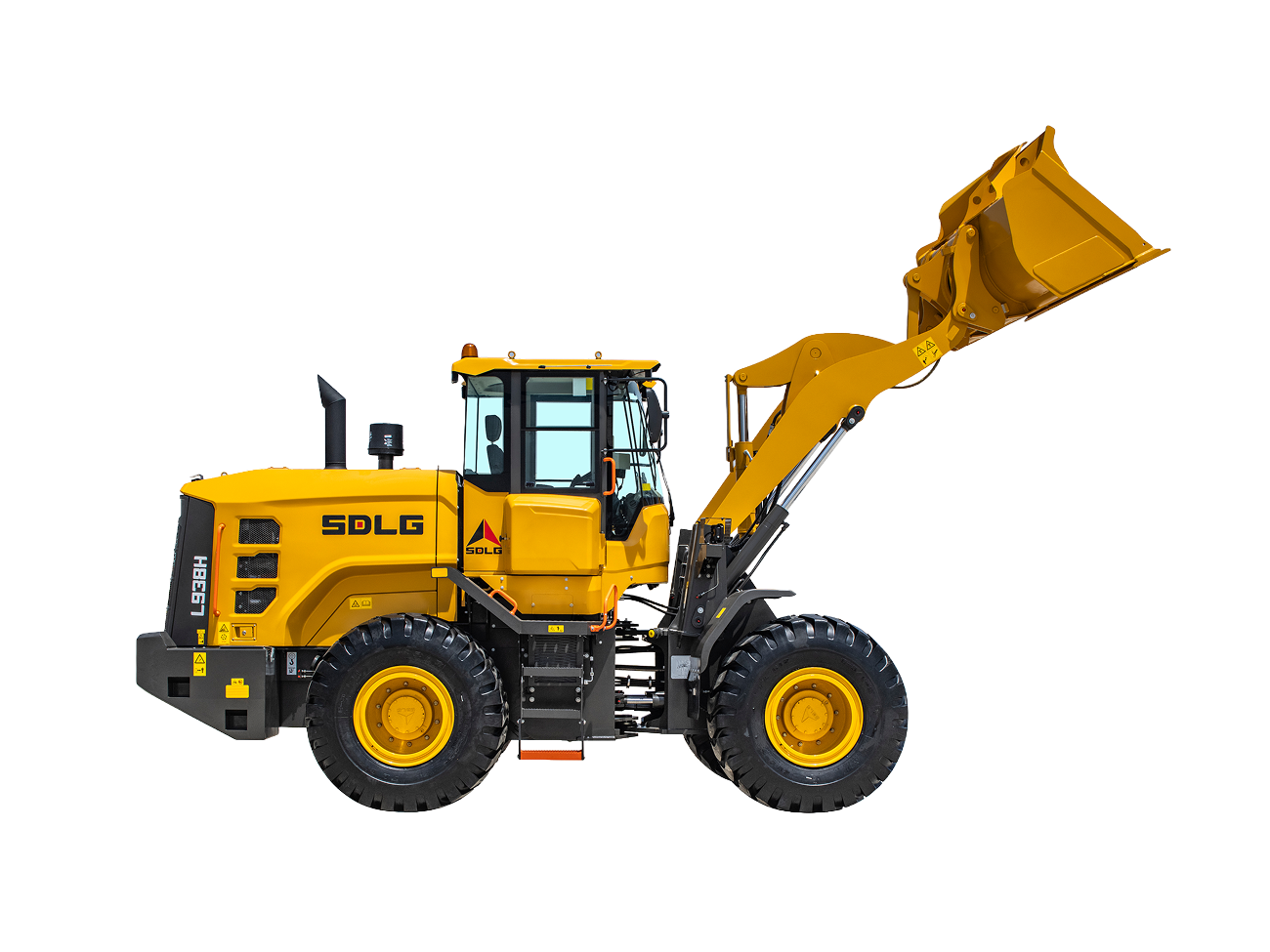

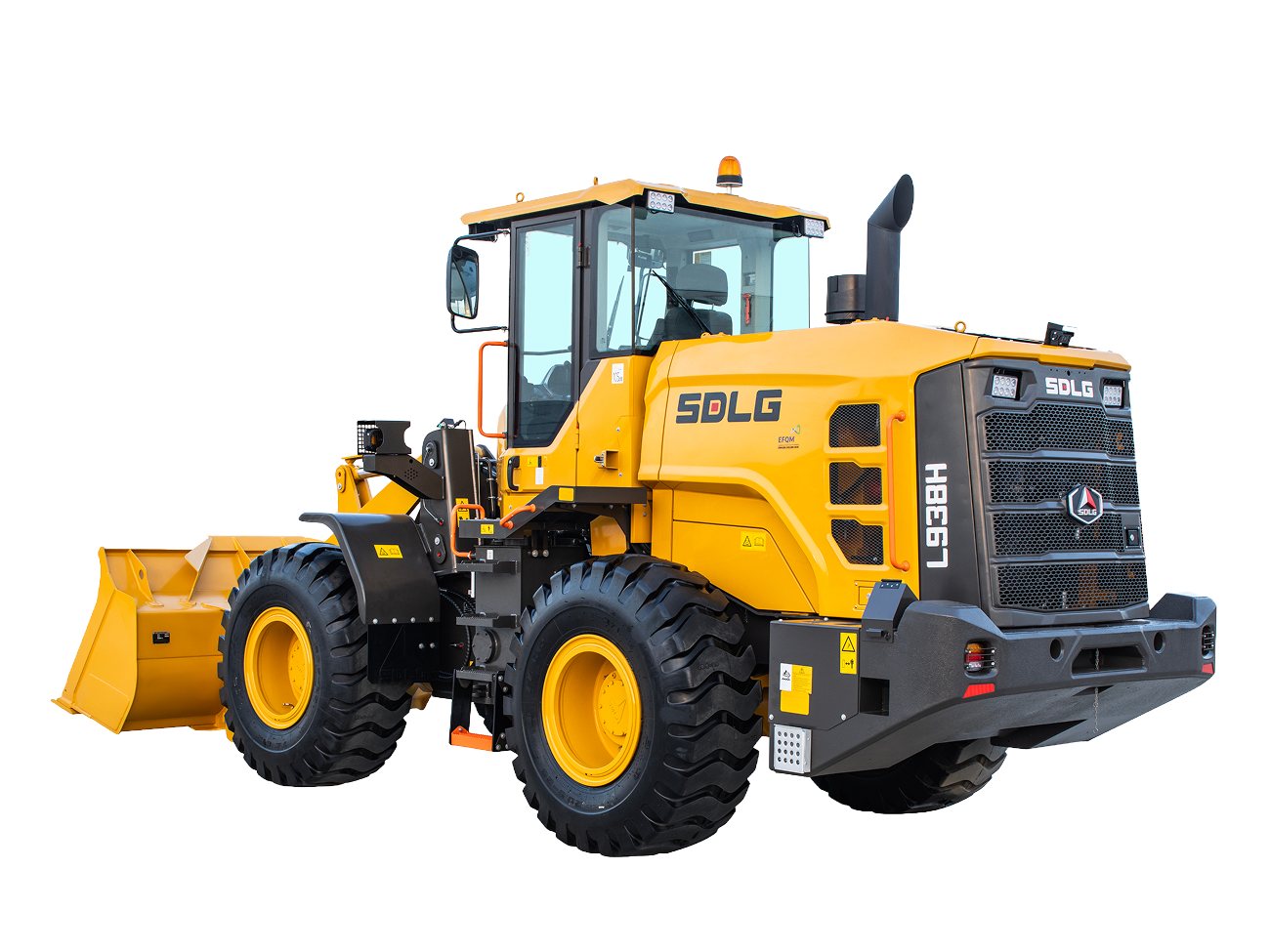

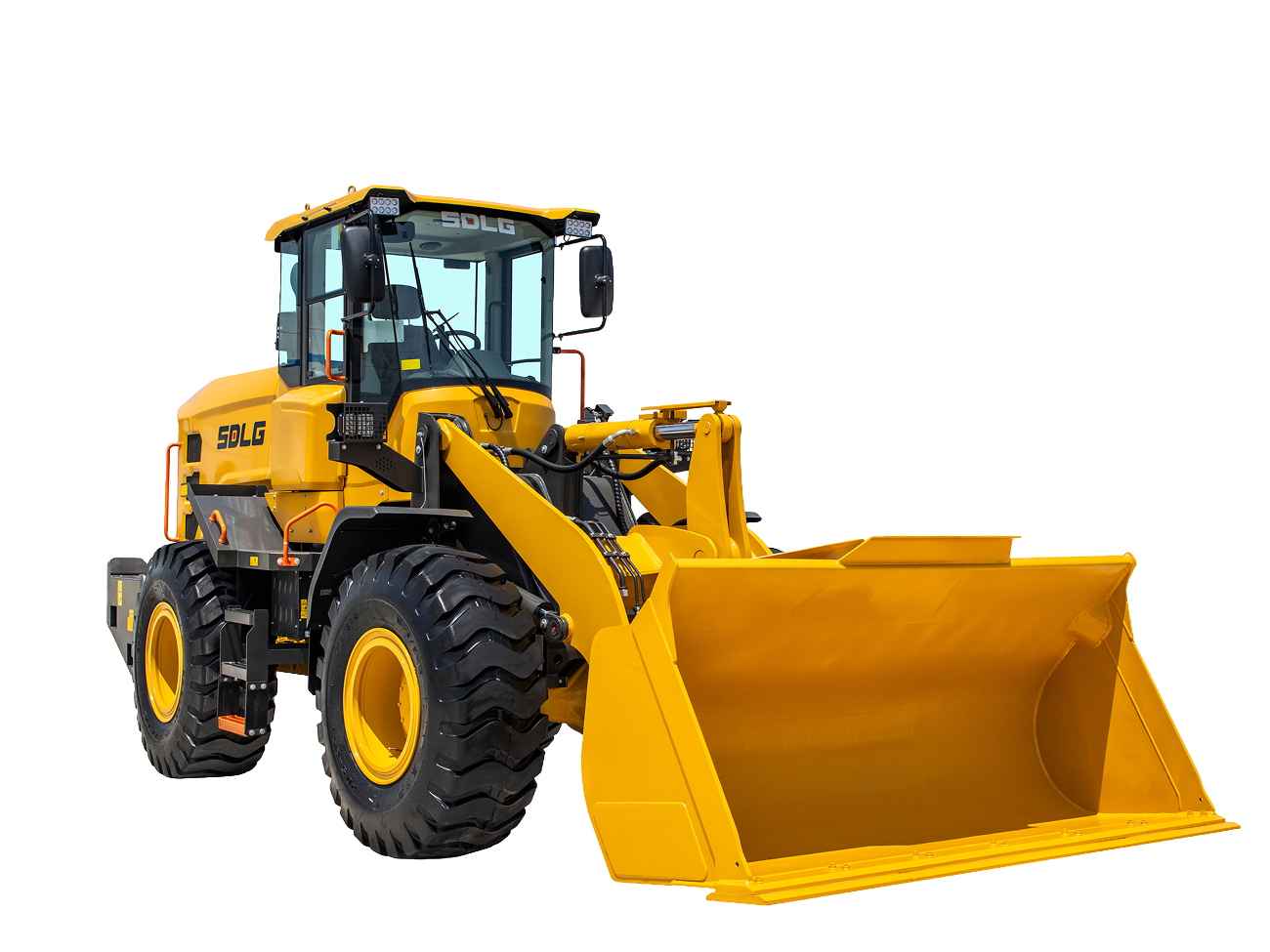

Wheel Loader L938H
Standard bucket capacity,m³(yd³)
Rated load ,kg (lbs)
Operating weight,kg (lbs)
Rated power ,kW (hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1. The L938H is equipped with ZF electric transmission and large 20.5-R25 tires, transmitting power reliably.
2. The full variable hydraulic system decreases overflow loss and fuel consumption.
3. Hydraulic-driven reversible cooling fan optimizes cooling and engine efficiency by varying the fan speed to maintain the appropriate water and oil temperatures.
4. Pilot single handle with FNR, KD function, and attachments quick connect function reduces operator fatigue and improves productivity.
5. ROPS&FOPS certified cab with expanded glass viewing area, rear-view camera, and four LED working lights.
6. All pertinent information is monitored by the conveniently located screen within the operator’s field of vision.
7. Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
2. The full variable hydraulic system decreases overflow loss and fuel consumption.
3. Hydraulic-driven reversible cooling fan optimizes cooling and engine efficiency by varying the fan speed to maintain the appropriate water and oil temperatures.
4. Pilot single handle with FNR, KD function, and attachments quick connect function reduces operator fatigue and improves productivity.
5. ROPS&FOPS certified cab with expanded glass viewing area, rear-view camera, and four LED working lights.
6. All pertinent information is monitored by the conveniently located screen within the operator’s field of vision.
7. Engine and daily maintenance points are easily accessible through the wide-opening rear hood.
Technical Parameter
| Standard bucket capacity,m³(yd³) | 2.1 (2.7) |
| Rated load ,kg (lbs) | 3,500 (7,716) |
| Operating weight,kg (lbs) | 13,300 (29,321) |
| Engine | SD60F |
| Rated power ,kW (hp) | 115 (154) |
| Rated engine speed ,rpm | 2200 |
| Engine displacement,ml (in³） | 5,702 (348) |
| Speed at Fl /Rl,km/h (mph) | 0~8 (0~5.0) |
| Speed at F2/R2,km/h (mph) | 0-13 (0~8.1) |
| Speed at F3/R3,km/h (mph) | 0-24.5 (0~15.2) |
| Speed at F4,km/h (mph) | 0-36.5 (0~22.7) |
| Breakout force,kN ( lbf ) | 80 (17,985) |
| Tire size | 20.5-25 |
| Fuel tank,L(gal) | 160 (42.3) |
| Overall shipping size (L • W • H)，mm (ft in) | 7,700 (25' 3.1") *2,485 (8' 1.8") * 3,400 (11' 1.9"） |
| A Wheelbase ,mm (ft in) | 2,850 (9'4.2") |
| B Ground clearance ,mm (ft in) | 440 (1'5.3") |
| C Reach at max. height ,mm (ft in) | 1,210 (3'11.6") |
| D Dumping angle ,° | 45 |
| E Height at bucket pin ,mm (ft in) | 3,850 (12'7.6") |
| F Dumping height ,mm (ft in) | 2,750 (9'0.6") |
| G Bucket rollback at ground level | 43.5 |
| I Wheel tread ,mm (ft in) | 1,965 (6'5.4") |
| J Articulation angle ,° | 37 |
| K Turning radius at over bucket,mm (ft in) | 6,195 (20'3.9") |
| M Turning radius at inside of tires,mm (ft in) | 5,300 (17'4.7") |
