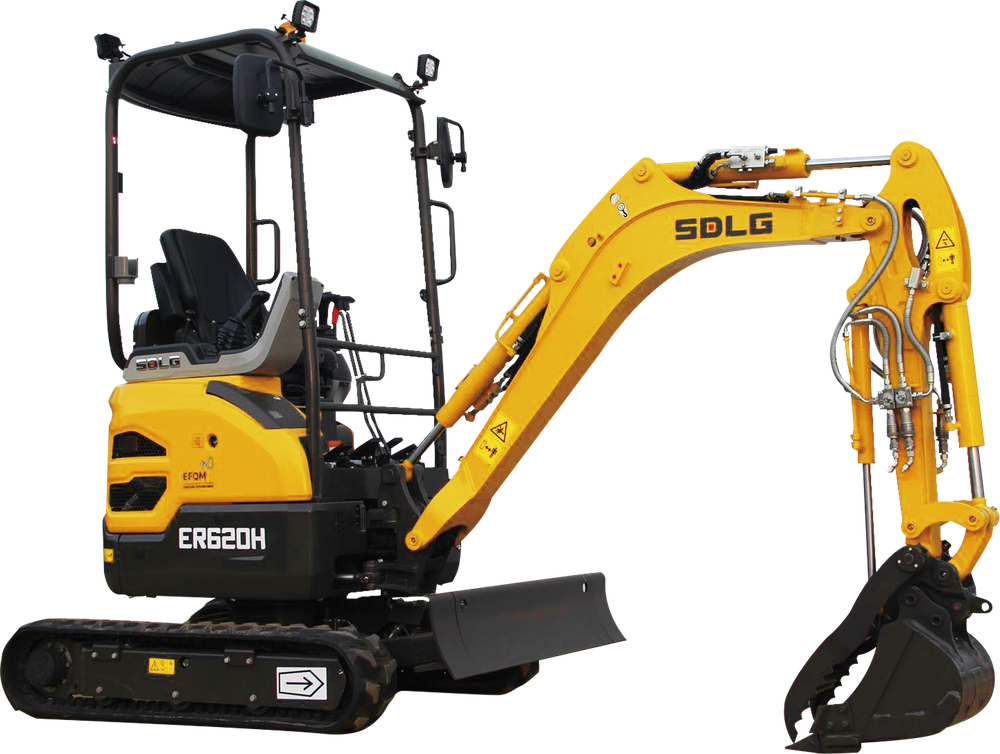

Excavator ER620H
Operating weight,kg (lbs)
Rated power,kw(hp)
Field of application:
Utilities
Heavy infrastructure
Quarries & Aggregates
Features
1. The ER620H is equipped with a Kubota engine providing ample power for all applications.
2. The width of the unit is narrow, has minimal tail swing, and great control performance providing the
ideal unit for operating in confined spaces.
3. Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
4. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
5. Full-color, high-resolution 7-inch screen that visually monitors the status of the unit.
6. ROPS&TOP guard certified canopy with double rearview mirrors and three LED work lights.
7. Filters are centrally located, providing easier maintenance.
2. The width of the unit is narrow, has minimal tail swing, and great control performance providing the
ideal unit for operating in confined spaces.
3. Standard units offer X1/X3 pipelines, meeting a wide range of attachments.
4. Auxiliary pipelines with 5 quick connectors, allow attachments to be changed quickly and efficiently.
5. Full-color, high-resolution 7-inch screen that visually monitors the status of the unit.
6. ROPS&TOP guard certified canopy with double rearview mirrors and three LED work lights.
7. Filters are centrally located, providing easier maintenance.
Technical Parameter
| Operating weight,kg (lbs) | 1,950(4,299) |
| Engine model | Kubota D902 |
| Rated power,kw(hp) | 11.8(15.4) |
| Rated engine speed,rpm | 2300 |
| Displacement,ml(in³) | 898(54.8) |
| Pump capacity,L/min(gal/min) | 52(11.4) |
| Main relief set pressure,bar(psi) | 240(3,480) |
| Max. digging force of bucket,kN(lbf) | 16.5(3,709) |
| Max. digging force of arm,kN(lbf) | 10(2,248) |
| Travel low speed,km/h(mi/h) | 2(1.2) |
| Travel high speed,km/h(mi/h) | 4(2.5) |
| Gradeability,° | 30 |
| Swing speed,r/min | 9.2 |
| Blade(width*height),mm(in) | 1,240(48.8" )*275(10.8") |
| Ground pressure,kPa(psi) | 31(4.5) |
| Fuel tank,L(gal) | 18(4.8) |
| Boom length,mm(ft in) | 1,830(6’) |
| Arm length,mm(ft in) | 965(3’2") |
| Bucket capacity,m³(yd³) | 0.04(0.05) |
| A Max. digging reach,mm(ft in) | 3,945(12’11.3") |
| B Max. digging reach on ground,mm(ft in) | 3,885(12’9") |
| C Max. cutting height,mm(ft in) | 3,490(11’5.4") |
| D Max. dumping height,mm(ft in) | 2,435(7’11.9") |
| E Max. digging depth,mm(ft in) | 2,330(7’7.7") |
| F Max. digging depth(horizontal 8ft),mm(ft in) | 1,600(5’3") |
| G Max. vertical wall digging depth,mm(ft in) | 1,770(5’9.7") |
| H Overall shipping height,mm(ft in) | 2,426(7’11.5") |
| I Tail swing radius,mm(ft in) | 650(2’1.6") |
| J Min. front swing radius,mm(ft in) | 1,640(5’4.6") |
| K Undercarriage length,mm(ft in) | 1,585（5’2.4") |
| L Overall shipping length,mm(ft in) | 3,620(11’10.5") |
| M Track width,mm(ft in) | 230(9") |
| W Overall shipping width,mm(ft in) | 990(3’3") |
